What is the difference between FUSION FORGED and PRECISION FORGED wheels?

Both FUSION FORGED wheels and PRECISION FORGED wheels represent advanced manufacturing techniques in the world of aluminum alloy wheels. However, they differ significantly in terms of production process, performance, and cost. Below is a detailed comparison of the two.

1. Manufacturing Process

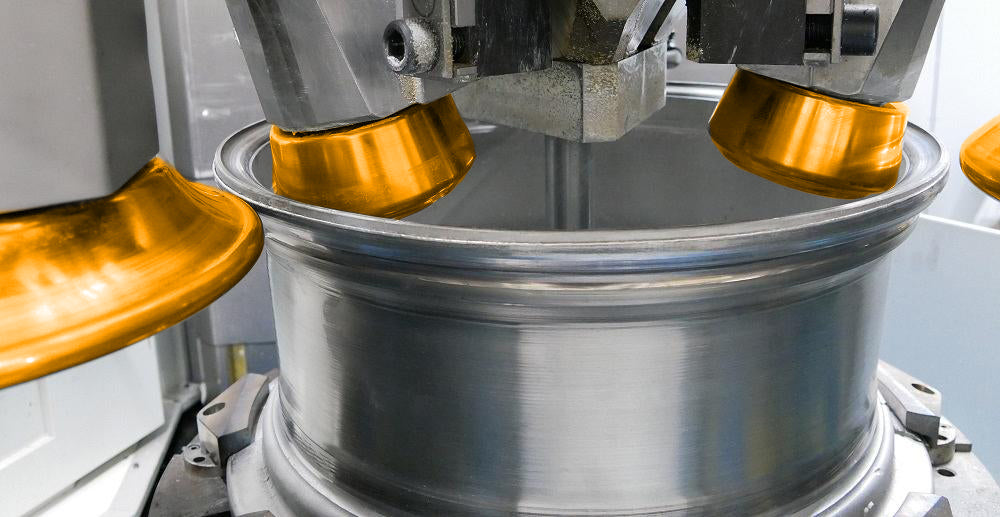

FUSION FORGED Wheels:

  • Start with a low-pressure or gravity-cast aluminum wheel blank.
  • The barrel section is then heated and stretched using high-speed rollers, a process known as flow forming.

  • This aligns and compresses the metal structure along the wheel’s circumference, much like stretching dough while keeping the center intact.

  • STEP 1

    The die-casted piece or the molded aluminum is propped above a steel mold and onto a locking mechanism that controls the motion to initiate the forging process

  • STEP 2

    Three rollers apply extreme pressure onto the side of the wheel which will shape the aluminum using the steel mold as a guide. Once one side is finished, Three rollers return to their original position.

  • STEP 3

    The three rollers apply the same pressure onto the side again to shape the aluminum to follow the shape of the new steel mold. Due to the high pressure, this technique allows for a stronger wheel as it does not require heat in order to permit shape change.

PRECISION FORGED Wheels:

  • Created from a single solid aluminum billet.

  • Formed using massive forging presses under extreme pressure, then finished with CNC machining.

  • The process compacts the material at the molecular level for unmatched strength and consistency.

  • STAGE 1.

    FORGING BILLET

  • STAGE 2.

    LATHE BLANK

  • STAGE 3.

    CNC MILLING

  • STAGE 4.

    FORMING & POLISHING

1. Forging Billet: Aerospace-grade 6061-T6 aluminum alloy is heated and press-forged into a solid cylindrical billet. This high-pressure forging process enhances the metal’s grain structure, increasing strength and reducing porosity—forming the foundation of a high-performance wheel.

2. Lathe Blank: The billet is then machined into a lathe-turned blank. At this stage, the wheel takes on its basic shape and dimensions, ensuring precise symmetry, weight balance, and consistency for the next steps of fine machining.

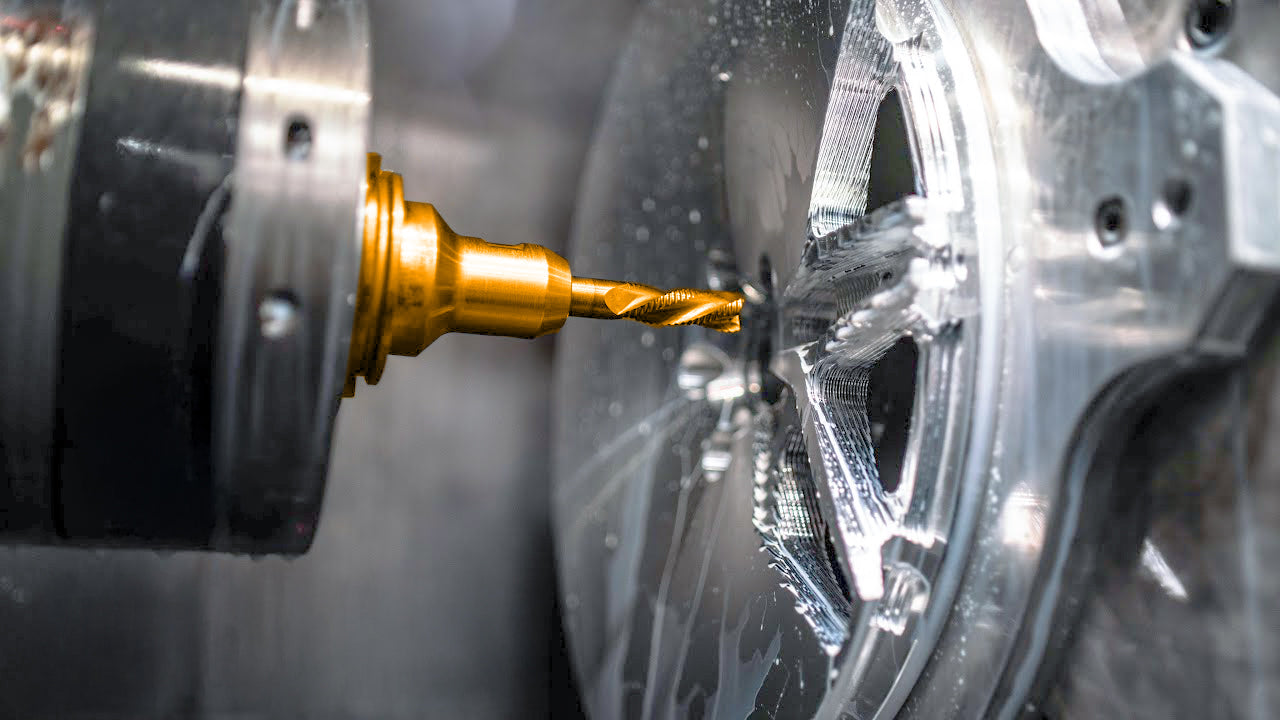

3. CNC Milling: Using 5-axis CNC machines, the intricate design of the spokes and inner surfaces is precisely milled out of the blank. This step determines the aesthetic and structural character of the wheel, blending lightweight geometry with optimal stress distribution.

4. Forming & Polishing: The milled wheel is subjected to final contouring, edge shaping, and multiple stages of hand or machine polishing. Depending on the finish, further treatments like brushing, anodizing, or clear coating may be applied—revealing a flawless surface with refined detail.

2. Material Strength & Performance

Feature FUSION FORGED PRECISION FORGED
Material Density Medium (better than cast, below forged) Very High (near-zero porosity)
Strength & Rigidity Good Excellent
Impact Resistance Solid Outstanding
Weight Reduction Moderate Superior

3. Cost & Market Positioning

Feature FUSION FORGED PRECISION FORGED
Price Level $$ — Mid-range $$$$ — Premium / High-end
Target Audience Performance-focused everyday drivers Enthusiasts, racers, and high-end vehicle owners
Manufacturing Complexity Moderate (partially cast, partially forged) Very High (fully forged from solid billet)
Value for Money Excellent strength-to-price ratio Unmatched quality and performance

PRECISION FORGED wheels are crafted from a solid billet of aluminum, then meticulously shaped through intense pressure and heat. This process aligns the metal’s grain structure for maximum strength while keeping weight to a minimum, making them ideal for high-performance applications.

In contrast, FUSION FORGED wheels begin as cast aluminum and undergo a specialized rotary-forming process. The barrel is heated and compressed by rollers, enhancing its density and strength without the full cost of a fully forged wheel. This method offers a well-balanced solution between durability, weight, and price.
